Tooling Ball Reflector

Tooling Ball Reflector

GLM Lasermeßtechnik is pleased to announce the availability of the new TBR series. It is a consequent development of the proven BSK. The coating of the glass triple prism mounted in the centre of the ball has been improved with regards to the reflection properties. The e laser is now reflected in the best possible way and enable the Sokkia total station to make optimal measurements.

In addition to a significant increase in the stainless steel surface quality of the spherical body, we can offer you a further accuracy class. The new TBR series is now available with a centering accuracy of ±0.1mm. This makes the TBR series a cost-effective, rugged and almost unbreakable option to an SMR.

The new TBR series is fully compatible with your previous adapters.

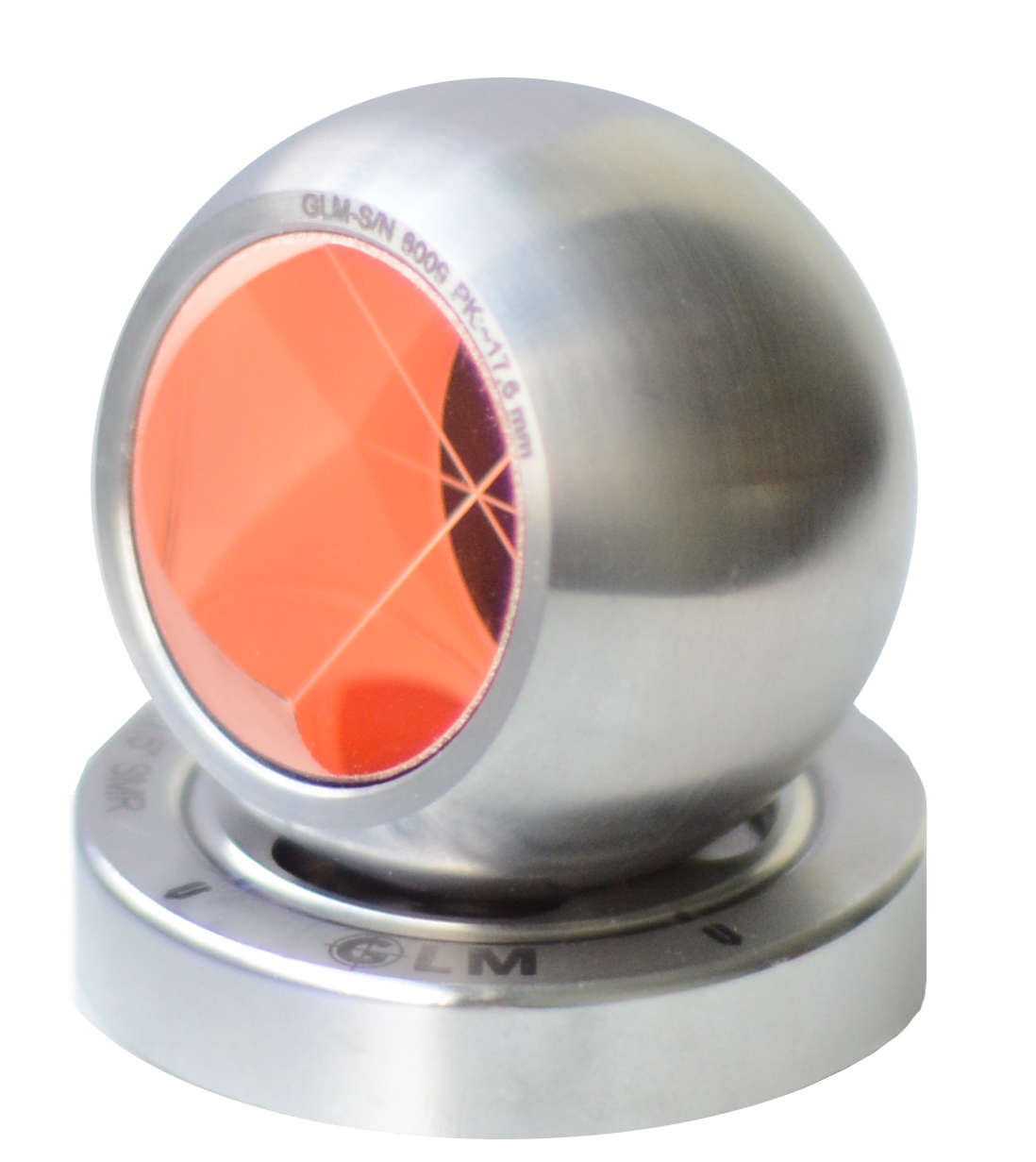

Tooling Ball Reflector  with base
Centering accuracy Code No
+-0.1 mm OMS5102742
+-0.2 mm OMS5102761

Prism constant -17,6 +- 0.1mm (Sokkia)
