SOFTWARE FOR 3D MEASUREMENTS

The Measuring and Analysis Package 3-DIM PT

3-DIM PT

3-DIM PT is the software solution that meets the various requirements of industrial metrology (collecting, processing, and documenting 3-dimensional data sets). This measuring and analysis software is ideal for CAD applications.

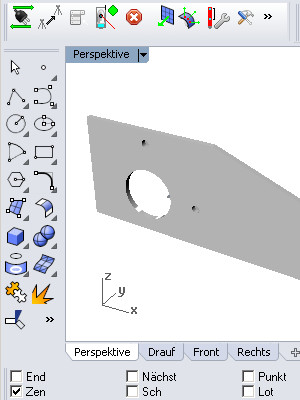

The software package includes several plug-ins, which are implemented in the 3D modeling program Rhinoceros. Rhinoceros is used in some planning, production, QA, and assembly departments and is similarly structured as the popular CAD programs (e.g., AutoCAD and TurboCAD). The implemented plug-ins are available in the form of tabs. Their use is intuitive and some are included in the graphical user interface as icons. Below you will find links to the various modules:

  • Measurement Center
    • Direct control of industrial total stations
  • Analysis functions, e.g.:
    • Analysis of free-form surface point
    • Analysis of points-points with tolerances
    • Correction of offsets
  • Interface to 3-DIM PC Basic and the field unit 3-DIM Observer
    • Input and read-out of TARGET and ACTUAL coordinates in processing programs
    • Input and read-out of data from mobile devices
  • 3-DIM Cranes
    • Automated analysis function for crane track measurements according to VDI3576
  • 3-DIM Rollers
    • Automated analysis function ofparallelism of machine rollers compared to main axis
  • 3-DIM Offshore
    • Generating surface models from offshore pipes from CAD files
    • Calculating saddle cuts and weld preparation for pipe installations

These software solutions are the product of a collaboration between GLM Lasermeßtechnik and various of our customers with a diverse background.

Do you have questions or want a quote, simply call (+ 49 2302 20399-30) or send us an e-mail.

Download PDF

3-DIM PT Prospect (831 kB)
Scanning Thor Heyerdahl (758 kB)
Volume Calc Print (159 kB)
