Spherical Reflector Accessories
Base 1.5″
The magnetic base with 25 mm offset is for spherical reflectors with a diameter of 1.5″. The 3-point support allows reliable centering in the center of the base.
| Description | Code No. | Base 1.5″ | 5102655 |

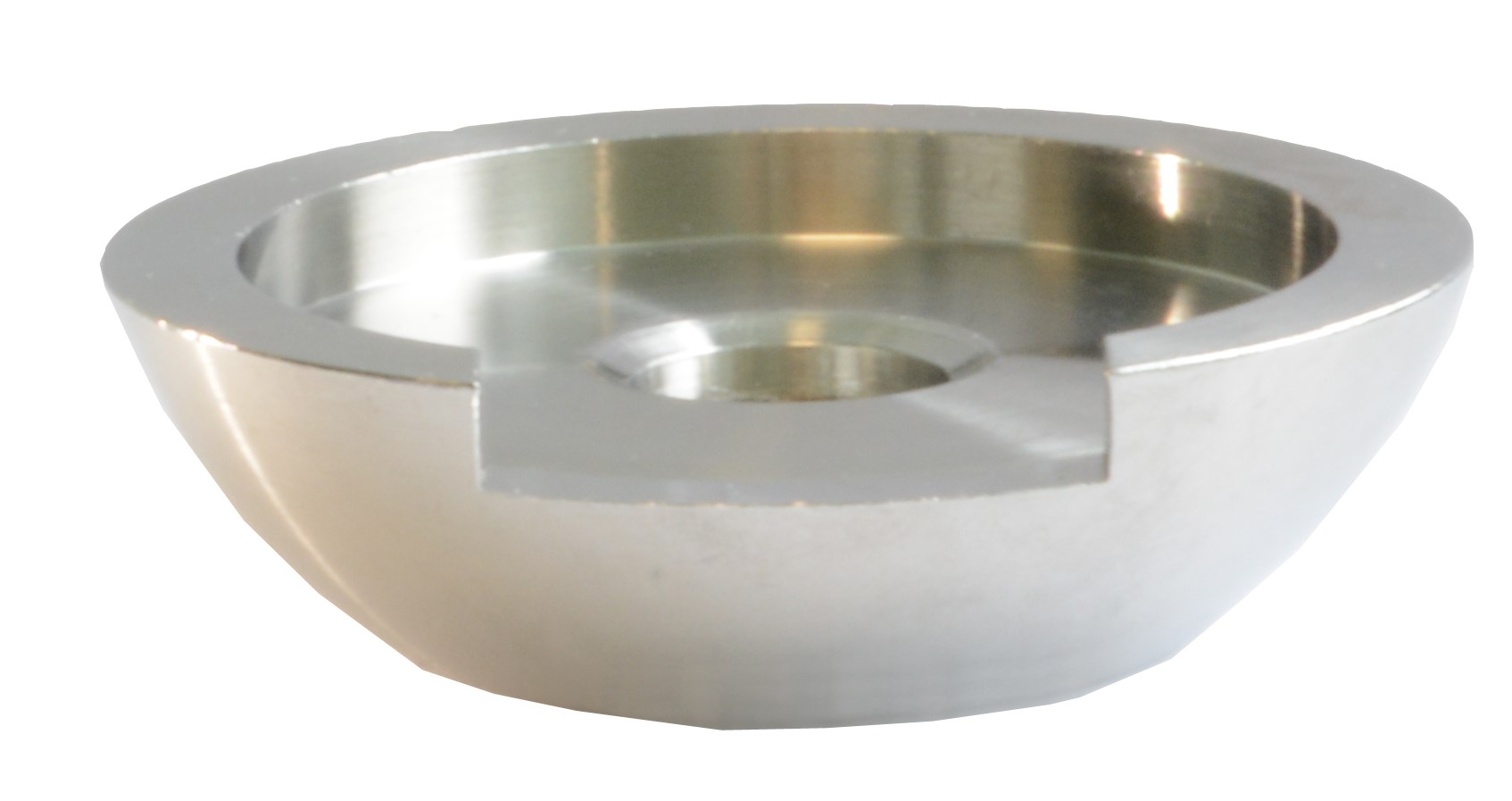

Base 1.5″ contur
The magnetic nest with 25 mm offset for spherical reflectors with a diameter of 1.5″ is for measuring contours. The tip of the quadrant is in the center, so it can be held at any angle to the edge and the 3-point support allows reliable centering in the center of the base.
| Description | Code No. |
| Base 1.5″ contur | OMS5101514 |

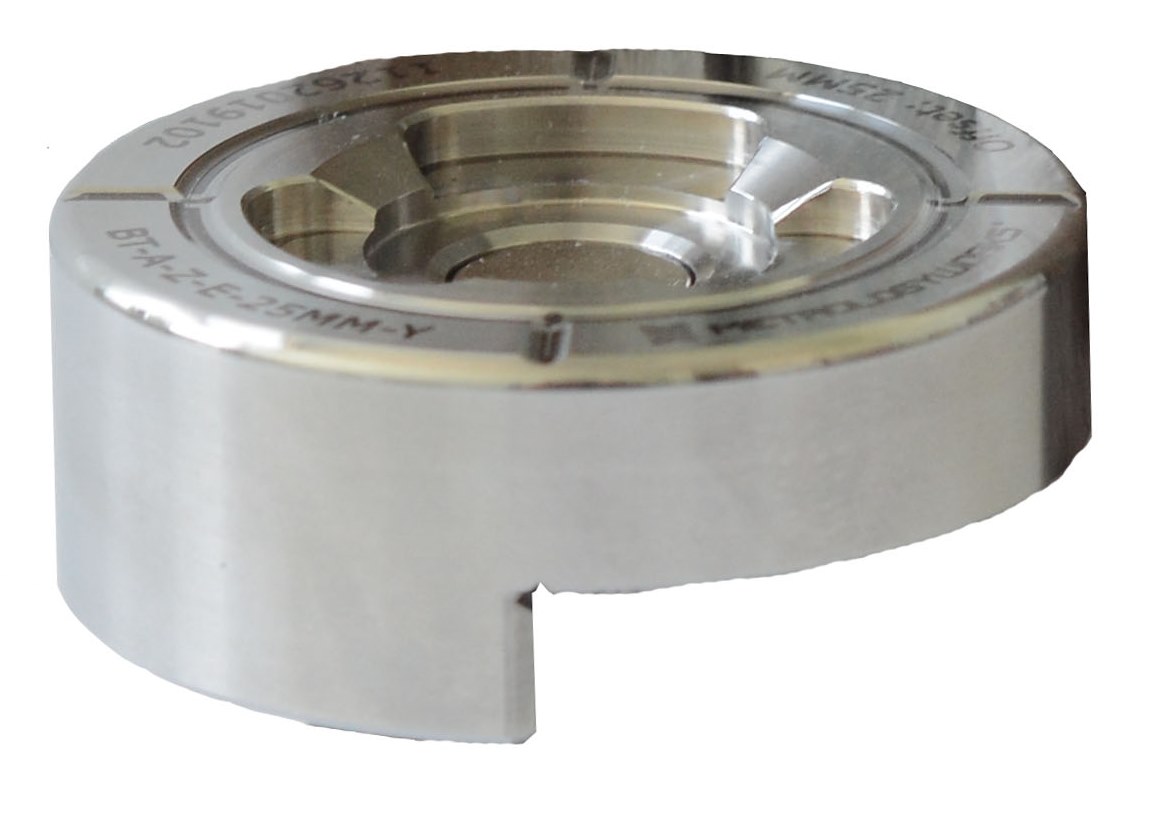

Base 1.5″ edge
The magnetic nest with 25 mm offset for spherical reflectors with a diameter of 1.5″ is for measuring edges and and the 3-point support allows reliable centering in the center of the base.
| Description | Code No. |
| Base 1.5″ edge | OMS5101486 |
Base 1.5″ pin
he magnetic nest with 25 mm offset for spherical reflectors with a diameter of 1.5″ At the base is a concentric bolt that allows the measurement of boreholes. The 3-point support allows reliable centering of the reflector in the center of the base which is exactly in the bolt axis.
| Description | Code No. |
| Base 1.5″ with 6mm pin | OMS5102661 |
| Base 1.5″ with 8mm pin | OMS5102738 |
| Base 1.5″ with 10mm pin | OMS5101487 |
| Base 1.5″ with 12mm pin | OMS5102739 |
Spherical adapters
Spherical Target Adapter for hole diameters with magnetic and centered mounting device for 1.5″ spherical reflectors.
| Hole diameters between | Code No. | 25 – 53 mm | OMS5101983 |
| 35 – 75 mm | OMS5102025 |
| 45 – 65 mm | OMS5101237 |
| 60 – 80 mm | OMS5101238 |
| 95 – 110 mm | OMS5101246 |
| 100 – 130 mm | OMS5101247 |
